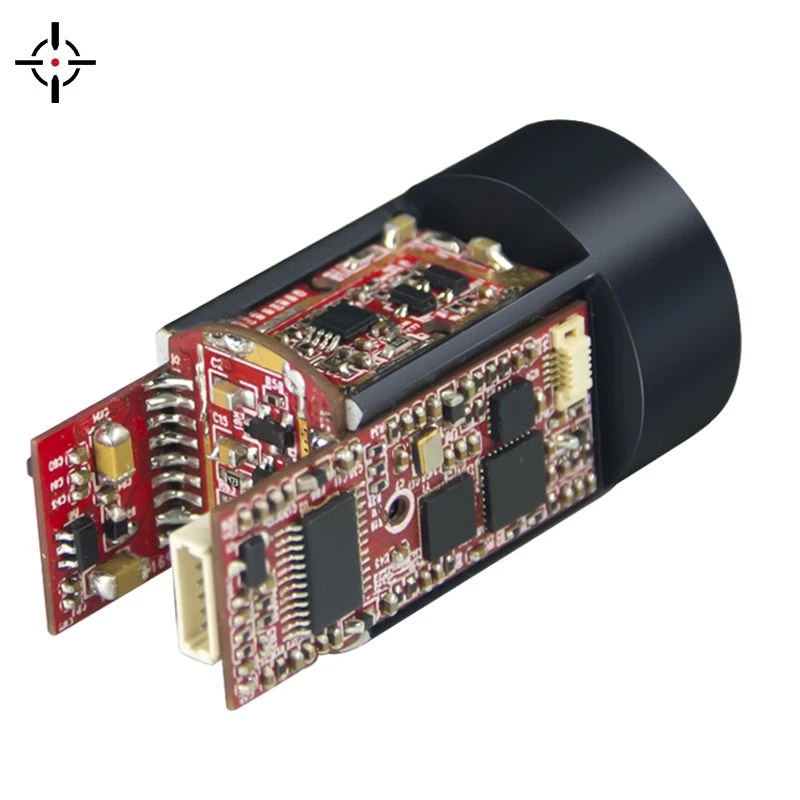

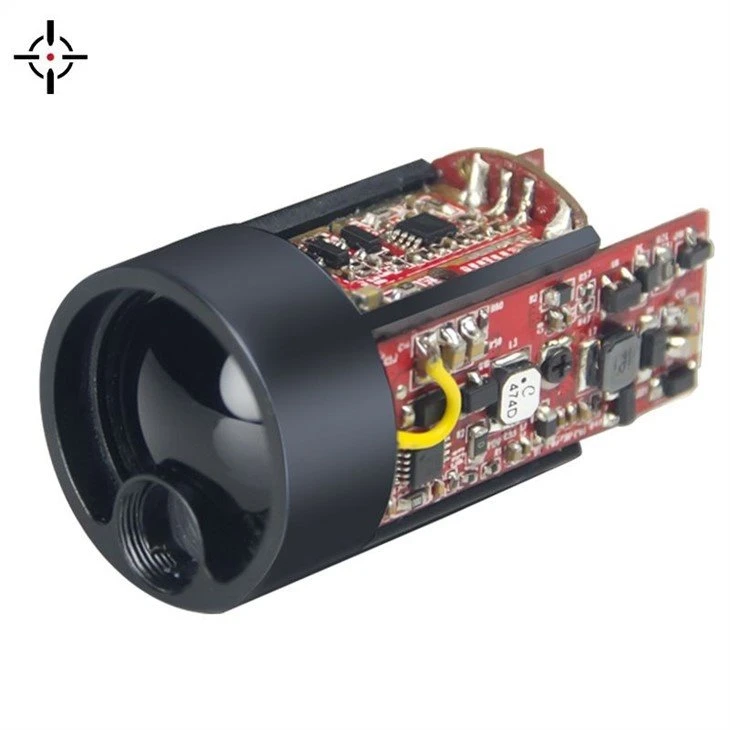

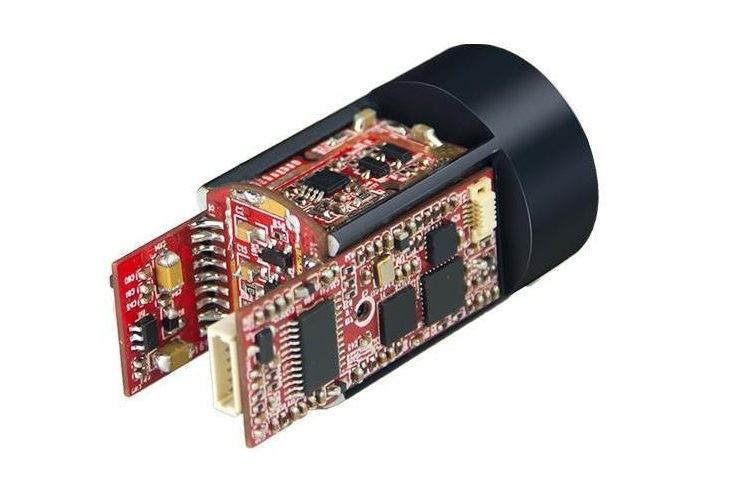

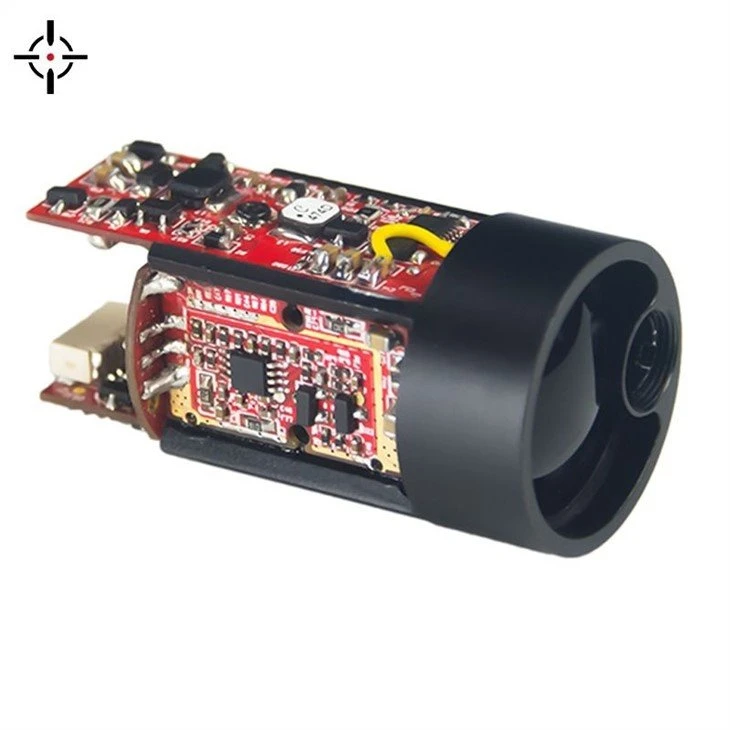

Lazer masofa o'lchagich moduli

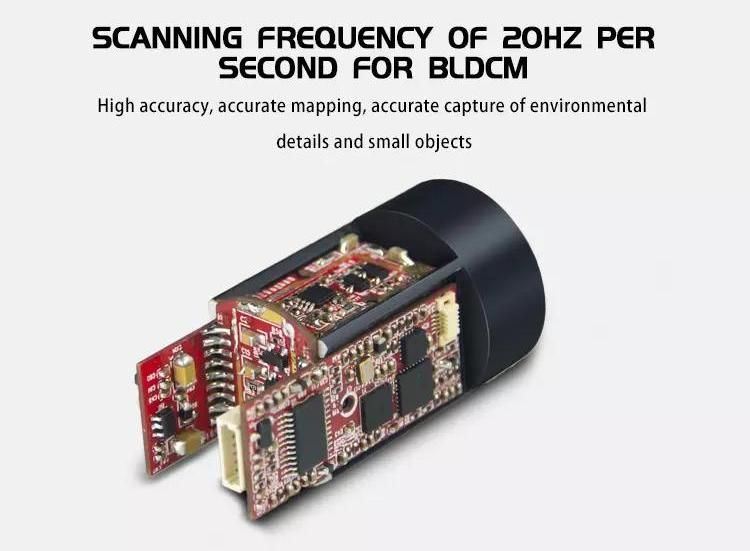

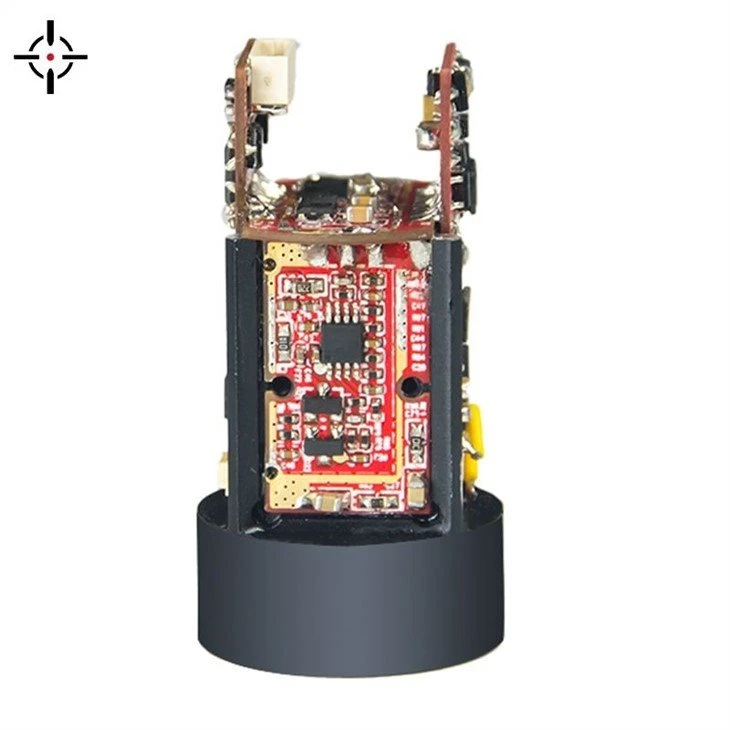

Lazer diapazoni moduli yuqori darajada integratsiyalangan, kam quvvat iste'moli, engil vaznli diapazon sensori. J52 seriyali - bu diqqatga sazovor joylarga, tungi ko'rish moslamalariga, termal tasvir kameralariga va boshqa mahsulotlarga osongina birlashtirilishi mumkin bo'lgan kichik diapazonli mahsulot bo'lib, diapazon funksiyasini tezda oshirish uchun.
Ishlash parametri | ||
D funktsiyasi texnik ko'rsatkichlari | H/AH/V funksiyasining texnik ko'rsatkichlari | |
Ilova maydoni | Drone/ Xavfsizlik/ Supurgi/ Trafikni aniqlash |
|

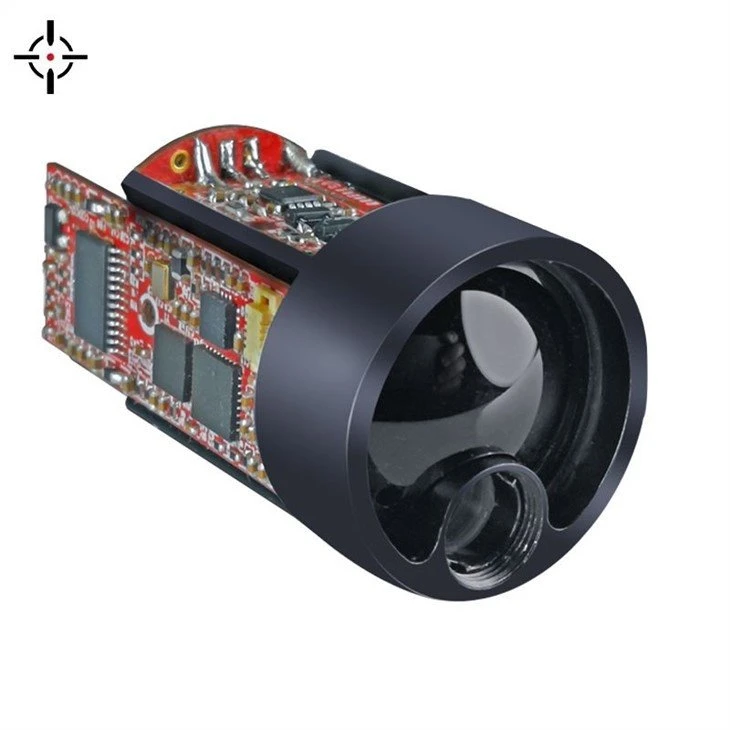

Emissiya diafragma | 6 mm | 6 mm |
Qabul qilish diafragma | 17mm(75%) | 17 mm (75%) |
Diapazon (binolar) | 0.15m～10/20/30/100/200m | 5m～600/1200/1500/3000m |
O'lchov aniqligi (bino) | ±3cm | <400m ±1m;="">400m ±0.4% |
O'zgaruvchan chastota | 10KHz/50KHz/100KHz | & lt; 600m 10HZ,>600m 2HZ |
Displey turi | - | |
Lazer turi | 905 nm | 905 nm |
Ta'minot kuchlanishi | 3.3～5V | 3.3～5V |

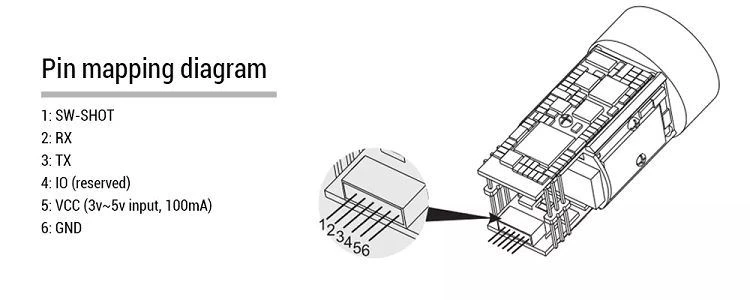

Aloqa interfeysi | TTL sifatida standart (boshqa maxsus tayyorlangan) | |
vazn | about20±10 | |
IP67 | IP67 | |
Ta'sirga qarshilik | 800G/ms (10 times/s) | 800G/ms (10 times/s) |

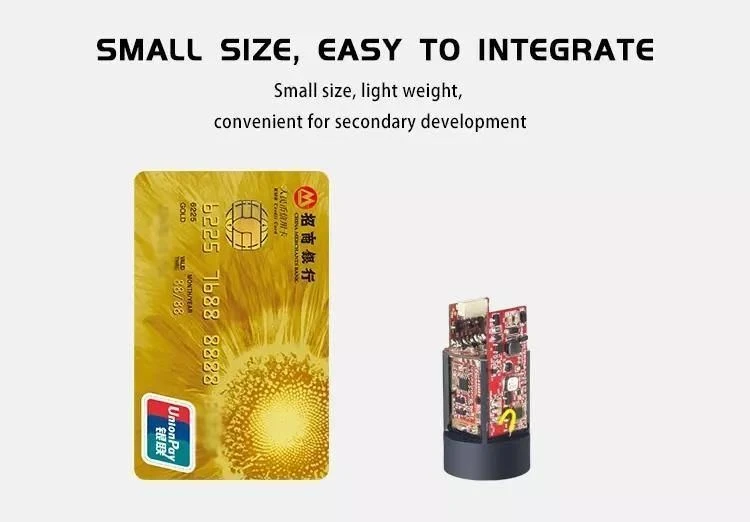

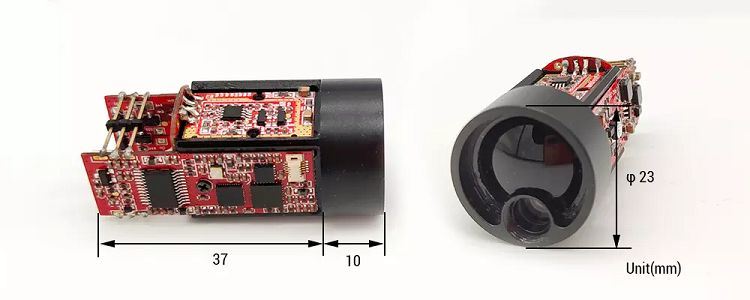

hajmi | ￠23 x44mm | |
Ishlash harorati | -20℃～50℃ | -20℃～50℃ |
Bod tezligi | 9600/ 115200/ 230400 (ixtiyoriy) | 9600/115200bps |
Quvvat chiqindilari | 0.8w (standby), 1W (measurement) | 0,8 Vt (kutish rejimi), 1 Vt (o'lchov) |
The product is suitable for measuring high reflectivity objects (such as highway's sign pad), moderate reflectivity objects(such as building's wall) and low reflectivity objects (such as tree, golf flag, utility pole, animal etc.) When the reflectance is reduced to a certain extent, the range will be reduced accordingly.
Mahsulotning assortiment qobiliyati quyidagi sharoitlarda aniqlanadi:
1) O'lchov maqsadi qurilish devorlari kabi o'rtacha reaktivlikka ega.
2) The measured object is vertical with laser emission direction.
3) The weather condition is sunny but not direct sunlight.
Eslatma: Yaxshiroq o'lchov olish uchun, o'lchash paytida mashinaning jitterini kamaytirish uchun uzoqdagi ob'ektlarni nishonga olganingizda mahsulotni tripodga o'rnatish tavsiya etiladi.
